eSafe 320 Series

Series 320 eSafe couplings are an easy to handle high performing coupling with a long service life. eSafe 320 is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. The couplings have a smaller outside dimension than comparable designs. Full automatic operation ensures easy handling.

eSafe complies with ISO Standard 4414 and EN 983.

  • Vented safety function
  • Extremely high flow capacity
  • Strong and durable

eSafe Series 320 is also available in standard, Soft-Line and Multi-Link versions.

DN 7.6 mm (5/16"). Flow capacity of 2,250 l/min (79.5 CFM). Max working pressure 232 PSI (16 bar). Made of zinc-plated steel/brass. CEJN original standard, Eurostandard 7.6 (7.4)

CAN'T FIND THE NIPPLE AND COUPLING TO SUIT?

DOWNLOAD THE NIPPLE GUIDE OR CHECK THE CONNECTION/ THREAD STANDARDS HERE

COUPLING
PART NO.
 CONNECTION

HOSE CONNECTION

 10 315 2002 CEJN drawing2

10 320 2002 6.3 mm
10 320 2003 7 mm
10 320 2004  10 mm
10 320 2005 13 mm

MALE THREAD

10 315 2152 cejn drawing

10 320 2152 R 1/4"
10 320 2154  R 3/8"
10 320 2155  R 1/2"

FEMALE THREAD

10 315 2102 cejn drawing

10 320 2202 G 1/4"
10 320 2204  G 3/8"
10 320 2205 G 1/2"

STREAM-LINE CONNECTION

10 315 2058 cejn drawing

10 320 2058 5 x 8 mm
10 320 2060 6.5 x 10 mm
10 320 2062 8 x 12 mm
10 320 2063 9.5 x 13.5 mm
10 320 2066 11 x 16 mm



NIPPLE
PART NO.
 CONNECTION

HOSE CONNECTION

10 315 5002 org cejn drawing

10 320 5001 5 mm
10 320 5002 6.3 mm
10 320 5003 8 mm
10 320 5004  10 mm
10 320 5005 13 mm

MALE THREAD

10 315 5154 CEJN drawing

10 320 5151  R 1/8"
10 320 5152  R 1/4"
10 320 5154  R 3/8"
10 320 5155 R 1/2"

FEMALE THREAD

10 315 5104 draw CEJN

10 320 5201 RC 1/8"
10 320 5202  RC 1/4"
10 320 5204 RC 3/8"
10 320 5205 RC 1/2"

STREAM-LINE CONNECTION

10 315 5062 draw cejn drawing

10 320 5058 5 x 8 mm
10 320 5060 6.5 x 10 mm
10 320 5062 8 x 12 mm
10 320 5063 9.5 x 13.5 mm
10 320 5066 11 x 16 mm
10 320 5068 13 x 18 mm
320 eSafe Hose Connection

320 eSafe Hose Connection

320 eSafe Male Coupling

320 eSafe Male Coupling

320 eSafe Female Coupling

320 eSafe Female Coupling

320 eSafe Streamline Connection

320 eSafe Streamline Connection

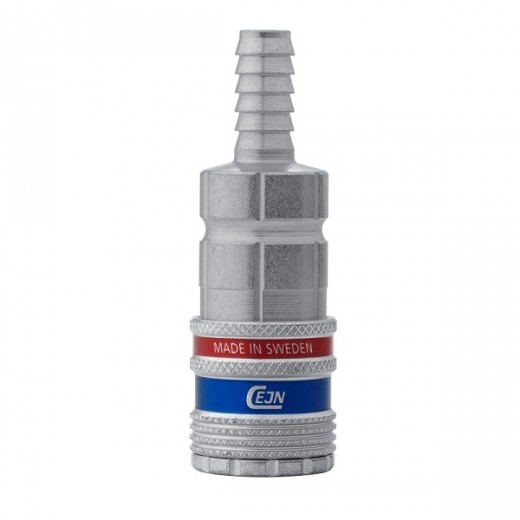

10 320 2004 CEJN 10 320 2152 CEJN 10 320 2204 CEJN 10 320 2062 CEJN
