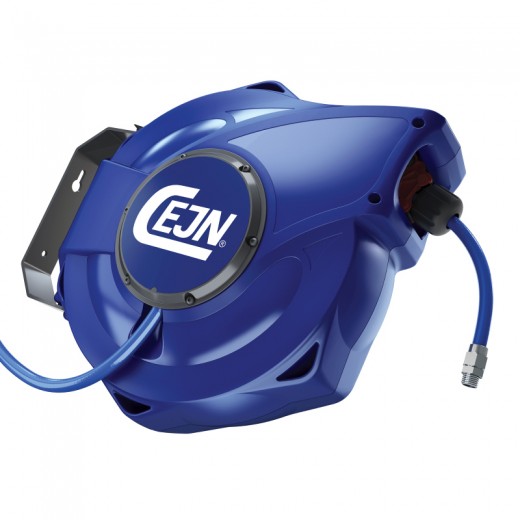

Compressed Air Hose Reels

CEJN air Hose Reels for compressed air feature high-quality, oil-resistant polyurethane hose. The feeder hose connection, axle and swivel design ensures a high flow rate and low pressure drop, securing top performance. The reel and spring assembly is tested to endure hours of hard use. The reels can swivel 180° making it possible for the operator to move around freely and the low pulling force makes it easy for anyone to handle. The impact resistant casing protects the hose and reel mechanism from dirt and debris.

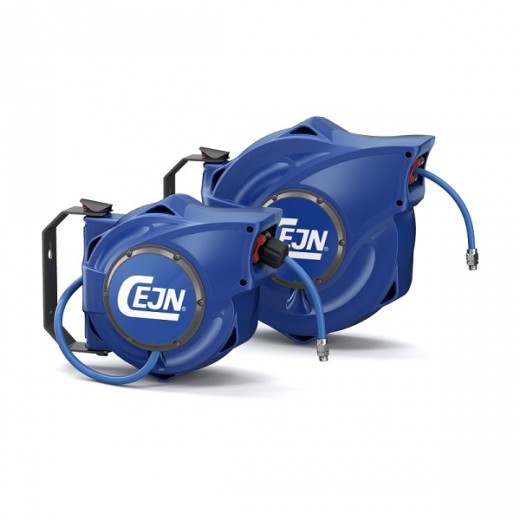

The Quick-Locks on the mounting bracket makes installation and service quick and easy. The CEJN Safety Closed Body Hose Reels are available in two casing sizes, Small and Medium.

CEJN Small Reel Hose Length and diameter details:

5m long x 11mm ID x 16mm OD, Connections: 1/2" BSPM  / eSafe options

7m long x 8mm ID x 12mm OD, Connections: 1/4" BSPM / eSafe options

10m long x 8mm ID x 12mm OD, Connections: 1/4" BSPM / eSafe options

CEJN Medium Reel Hose Length and diameter details:

8m long x 13mm ID x 18mm OD, Connections: 1/2" BSPM  / eSafe options

10m long x 11mm ID x 16mm OD, Connections: 1/2" BSPM / eSafe options

14m long x 9.5mm ID x 13.5mm OD, Connections: 3/8" BSPM / eSafe options

17m long x 8mm ID x 12mm OD, Connections: 1/4" BSPM / eSafe options

All hose reels are supplied with a feeder hose.

• Patented full-flow design
• Low pressure drop
• Strong and durable
• Slow, guided retraction system

CEJN air Hose reels are the high-quality choice for industries and workshops that want the best professional option on the market with its high flow rate, low pressure drop and sturdy exterior. The lightweight design of polyurethane hose makes CEJN hose reels easy to maneuver. The smooth outer layer of the hose ensures flawless feeding action without tangles.

Among special features of CEJN reels is a stop function that can be disengaged, allowing continuous feeding action. The spring force can be adjusted for operator comfort and to compensate for different weight and balance requirements.
