CEJN streamline adapters are reusable, high-performance fittings designed specifically for use with CEJN flexible PUR hoses to create leak-free, high-flow compressed air connections. Unlike standard barbed fittings that require hose clamps, Stream-Line adapters use a nut-based compression system that ensures a secure attachment even under heavy wear.
CEJN streamline adapters
Key Features & Benefits
- Leak-Free Connection: Designed to eliminate the leaks common with traditional hose clamps, improving energy efficiency across the system.
- Reusable Design: Fittings can be easily removed and refitted to new hoses in seconds with minimal tools, maintaining a clean production environment.
- High Flow Capacity: Engineered to maintain maximum flow with minimal pressure drop, which is critical for tool performance and reducing compressor load.
- Safety Integration: Often used as part of the eSafe quick connect system, providing a vented safety function that prevents hose whip during disconnection.
- Flexible Options: Available in Fixed or Swivel configurations, with or without kink protectors to extend hose life.
Technical Specifications
| Feature | Details |
|---|---|
| Main Material | Plated Brass |
| Max Working Pressure | Typically 16 bar (232 PSI) |
| Temperature Range | -30°C to +100°C (-22°F to +212°F) |
| Common Hose Sizes (ID x OD) | 5.0x8.0mm, 6.5x10.0mm, 8.0x12.0mm, 9.5x13.5mm, 11.0x16.0mm |
| Connection Types | BSPT (R), NPT, and G threads (1/4", 3/8", 1/2", 3/4") |
Available Models
- Fixed Adapters: Standard rigid connection between the hose and tool/coupling.
- Swivel Adapters: Allows for 360-degree rotation, reducing hose tension and improving ergonomics for the operator.

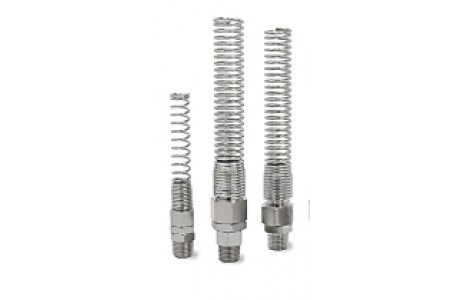

- Kink Protectors: Specialized versions with a reinforced spring or sleeve to prevent the hose from bending too sharply at the connection point.
