CEJN CLASSIC AND ESAFE 315 Series couplings offer high flow and require only a low connection force, which ensures a safe working environment.
CEJN CLASSIC 315 SERIES couplings are lightweight and easy to handle yet strong and durable. The Series includes a wide range of connections as well as anti-hose whip nipples.
- Extremely high flow capacity.
- Low connection force.
- One-hand operated.

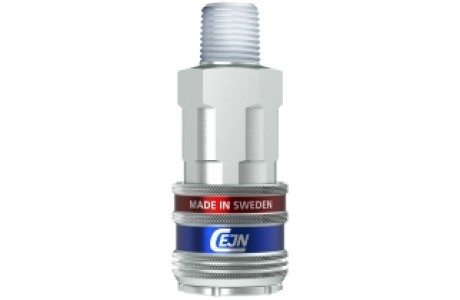

CEJN eSafe 315 SERIES is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operator injury. The one-handed operation ensures easy handling.
A fully automatic operation ensures quick and easy handling. eSafe complies with ISO Standard 4414 and EN 983.
- Vented safety function
- Extremely high flow capacity
CEJN 315 series @ 1950l/min - Strong and durable
- Compatible / Interchangeable with ARO 380 / NITTO series
CEJN eSafe 315 Series is also available in Soft-Line and Multi-Link versions.
DN 7.5 mm (5/16"). Flow capacity of 1,950 l/min (68.7 CFM). Max working pressure 232 PSI (16 bar). Made of zinc-plated steel/Aluminium.
Can't find the nipple and coupling to suit?
Download the Nipple Guide or check the connection/ thread standards here
