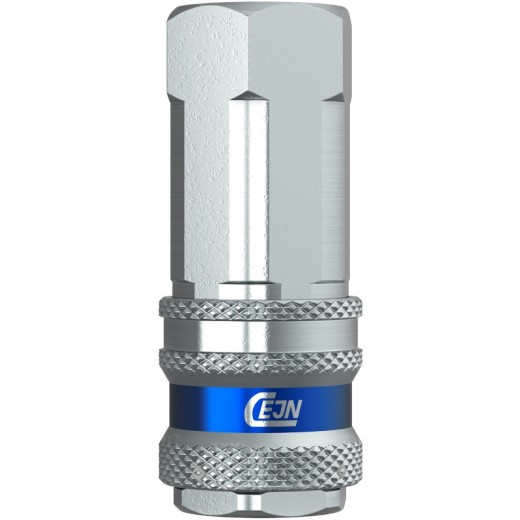

CEJN Classic Coupling 1/4" BSP Female Connection
| Category | Couplings |
| Title | Female thread |
| Connection | Rc 1/4" |
| Connection type | Standard quick couplings |
| Nominal flow diameter (mm) | 7.5 mm |
| Air flow (l/min) | 1950 l/min (68.86 CFM) |
| Max working pressure (bar) | 16 bar |
| Burst pressure (bar) | 140 bar (2030.53 PSI) |
| Connection force (N) | 73.5 N |
| Min. temperature (°C) | -20°C (-4°F) |
| Max temperature (°C) | 100°C (212°F) |
| Nipple standard | Asian standard 7.5 mm (ARO380/NITTO) |
| Main material | Steel |
| Standards | Asian Standard, 7.5 mm (ARO380/NITTO) |
NOTE: Images are for reference only, actual product may differ in appearance.
Product Code: 18-103151102-A
$32.71
