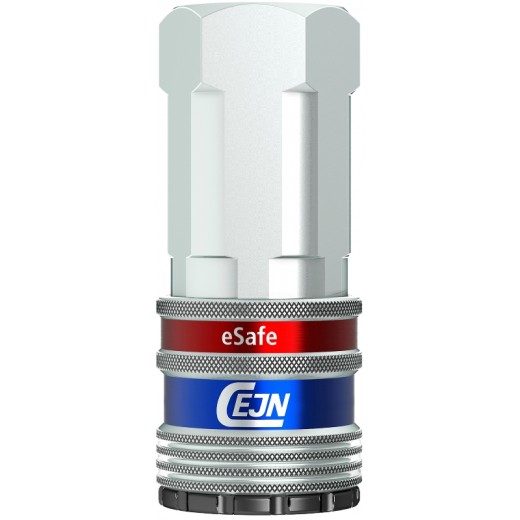

CEJN eSafe Coupling 3/8" BSP Female Connection
| Category | eSafe vented safety coupling |
| Title | Female thread connection |
| Connection | G 3/8" |
| Connection type | Standard quick couplings |
| Nominal flow diameter (mm) | 5.5 mm |
| Air flow (l/min) | 1150 l/min (40.61 CFM) |
| Max working pressure (bar) | 16 bar |
| Burst pressure (bar) | 140 bar (2030.53 PSI) |
| Connection force (N) | 86 N |
| Min. temperature (°C) | -20°C (-1°F) |
| Max temperature (°C) | 100°C (215°F) |
| Nipple standard | ARO 210 standard 5.5 mm |
| Main material | Steel |
Product Code: 18-103002204-A
$52.65
