CEJN Hose options are lightweight, extremely flexible and have excellent recoil-ability, making them a perfect mate for small and lightweight pneumatic tools. They are abrasion-resistant and score high marks in terms of impact, tensile and tear strength and lasts up to 10 times longer than conventional PVC hose.
CEJN’s Stream-Line Series is a range of PUR hoses that is compatible with the other Stream-Line products, such as couplings, kink protectors and adapters, just to reduce the risk of leakage and give the customer’s pneumatic system a higher quality and longer life span. The Stream-Line seal is made of a cone and swivel nut and, together with the stream-line hose, you get a tight and secure joint without clamps. The seal does not require any retightening. The streamline adapter details are included in the PDF file Download below.

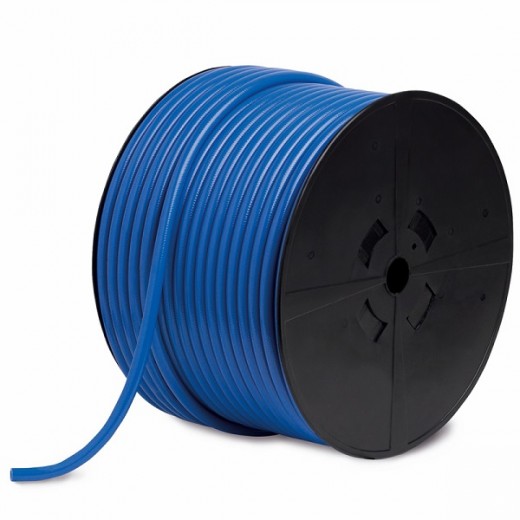

CEJN straight braided hose is an excellent choice for applications requiring a maximum working pressure up to 16 bar (232 PSI). It offers a wide temperature range and high tensile, tear, and impact strength. The hose easily springs back to its original form and has excellent abrasion resistance.
• Light and flexible
• Excellent resistance to oil, solvents, and other non-aqueous solutions
• Long service life with outstanding aging qualities
ID x OD |
Length |
Part No. |
Max Working |
Burst Pressure |
| 6.5 x 10 mm | 100 m | 19 958 1000 | 232 PSI / 16 BAR | 64 BAR (928 PSI) |
| 50 m | 19 958 1020 | 232 PSI / 16 BAR | 64 BAR (928 PSI) | |
| 8 x 12 mm | 100 m | 19 958 1200 | 232 PSI / 16 BAR | 64 BAR (928 PSI) |
| 50 m | 19 958 1220 | 232 PSI / 16 BAR | 64 BAR (928 PSI) | |
| 9.5 x 13.5 mm | 100 m | 19 958 1350 | 232 PSI / 16 BAR | 64 BAR (928 PSI) |
| 50 m | 19 958 1370 | 232 PSI / 16 BAR | 64 BAR (928 PSI) | |
| 11 x 16 mm | 100 m | 19 958 1600 | 174 PSI / 12 BAR | 48 BAR (696 PSI) |
| 50 m | 19 958 1638 | 174 PSI / 12 BAR | 48 BAR (696 PSI) | |
| 13 x 18 mm | 50 m | 19 958 1801 | 145 PSI / 10 BAR | 40 BAR (580 PSI) |
Hose Material: Ester-based polyurethane reinforced with polyester fiber
straight hose (non braided)
An excellent choice for applications requiring a maximum working pressure up to 10 bar (145 PSI). It is light and flexible and offers high tensile, tear, and impact strength. The hose easily springs back to its original form.
- Suitable for push-to-connect fittings
- Excellent resistance to oils, solvents, and other non-aqueous solutions
- Long service life with outstanding aging qualities
ID X OD |
LENGTH |
PART NO. |
MAX WORKING |
BURST PRESSURE |
| 4 x 6 mm | 50 m | 19 958 0702 | 145 PSI / 10 BAR | 25 BAR (362 PSI) |
| 5 x 8 mm | 50 m | 19 958 0802 | 145 PSI / 10 BAR | 25 BAR (362 PSI) |
| 6.5 x 10 mm | 50 m | 19 958 1002 | 145 PSI / 10 BAR | 25 BAR (362 PSI) |
| 8 x 12 mm | 50 m | 19 958 1202 | 145 PSI / 10 BAR | 25 BAR (362 PSI) |
| 11 x 16 mm | 50 m | 19 958 1602 | 145 PSI / 10 BAR | 25 BAR (362 PSI) |
Hose Material - FDA approved. Ester-based polyurethane.
Anti-Static Hose (Straight Braided)
Electrically conductive hose is made of braided EPDM Rubber that dissipates electro-static discharge and minimizes errant sparks. It is an excellent choice for applications in which media causes excessive static charge or where a static discharge has the potential to cause explosion or damage. The hose offers extreme flexibility in all weather and has a protective cover that stands up well to the elements.
- Dissipates electro-static discharge
- Excellent weather resistance
- Extreme flexibility
ID X OD |
LENGTH |
PART NO. |
MAX WORKING |
BURST PRESSURE |
| 8 x 15 mm | 40 m | 19 900 9920 | 174 PSI / 12 BAR | 48 BAR (696 PSI) |
| 10 x 17.5 | 40 m | 19 900 9918 | 174 PSI / 12 BAR | 48 BAR (696 PSI) |
| 12 x 19.5 | 40 m | 19 900 9921 | 174 PSI / 12 BAR | 48 BAR (696 PSI) |
Hose Material - Braided EPDM Rubber

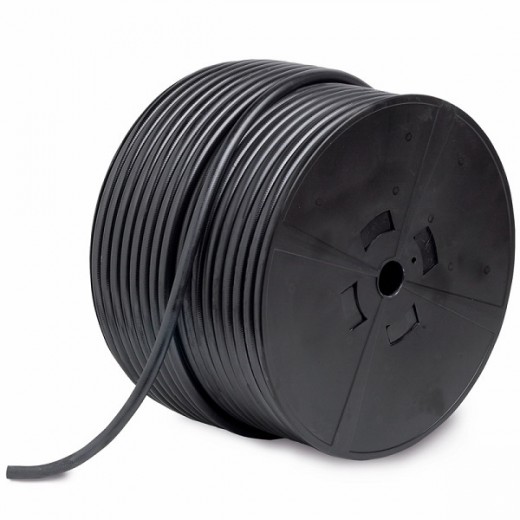

Anti-Spark Hose (Straight Braided) is resistant to scorching and damage due to exposure to sparks that are present in welding environments or where cutting equipment is in use. The hose offers outstanding aging qualities and long duty. It is light and flexible and has high impact strength, as well as high tensile and tear strength. The hose easily springs back to its original form.
The first layer of the hose consists of ester-based polyurethane, the second of polyester fiber braiding and the third of ester-based polyurethane.
- Spark and scorch resistant
- Excellent resistance to oils, solvents, and other non-aqueous solutions
- Long service life with outstanding aging qualities
ID X OD |
LENGTH |
PART NO. |
MAX WORKING |
BURST PRESSURE |
| 8 x 12 mm | 50 m | 19 958 1230 | 203 PSI / 14 BAR | 56 BAR (812 PSI) |
| 9.5 x 13.5 mm | 50 m | 19 958 1330 | 174 PSI / 12 BAR | 48 BAR (696 PSI) |
| 11 x 16 mm | 50 m | 19 958 1637 | 174 PSI / 12 BAR | 48 BAR (696 PSI) |
Hose Material: Ester-based polyurethane reinforced with polyester fiber.
